N52789

Rates

• Normal rate (ACH): $150/tach-hour (Wet)
• Mid-week discount rate (ACH): $140/tach-hour (Tue/Wed/Thu same-day flights)

Basic Information

• Model: 1981 Cessna 172P
• Engine: 160hp Lycoming O-320-D2J
• Seats: 4
• Fuel Capacity: 43 gal (40 usable)
• Flight Rules: IFR

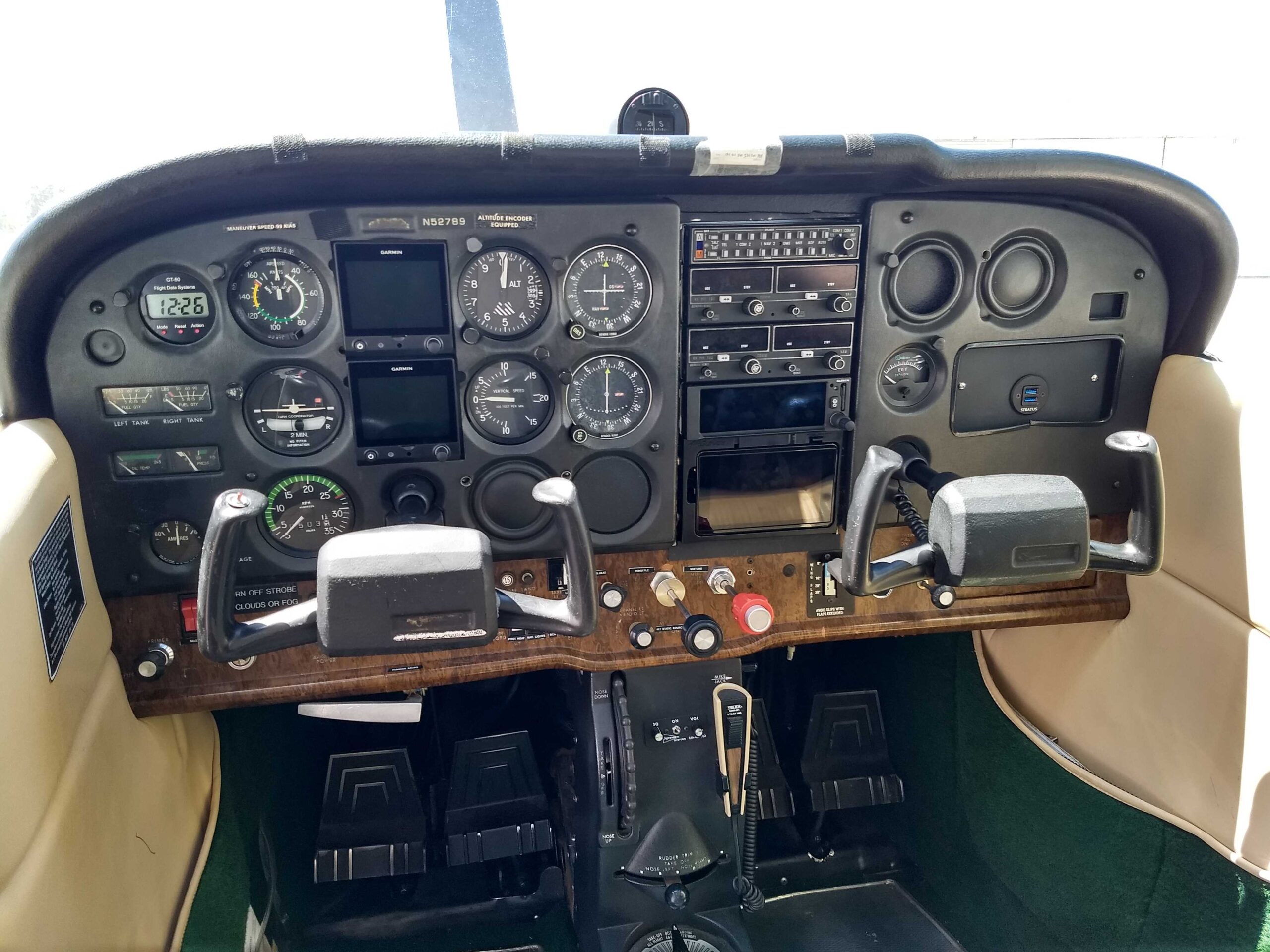

Avionics

• Garmin G5 DG/HSI
• Garmin G5 Attitude Indicator
• Garmin GNX375 GPS with Built-in Transponder
• KX 155 Nav/Com
• A-DSB In/Out

AAC C172 Familiarization Sheet

Technical & Performance Data

(Quick Reference Only, Refer to POH for most up to date information)

Speeds (knots)

• V speeds C172P

  • Vne: 158
  • Vno: 127
  • Va: 105 @2550 95 @ 2150 85 @ 1750
  • Vfe: 10 deg flaps: 110 10 – 30 deg flaps: 85
  • Max Window open Speed: 158
  • White arc: 40 – 85
  • Green arc: 50 – 127
  • Yellow arc: 127 – 158
  • Red arc: 158

• AVOID SLIPS WITH FLAPS EXTENDED

• MAXIMUM FLAP TRAVEL IS 30 deg

Compass Deviations

For	N	30	60	E	120	150
Steer	N	-x	-x	-x	-x	-x

For	S	210	240	W	300	330
Steer	-x	-x	-x	-x	-x	-x

Other

• Fuel Capacity: 43ga. total, 40 usable
• Oil Capacity (Total): 8 qts
• Propeller: Sensenich 76EM8S5 or 76EM8SPY
• Engine: Avco Lycoming O-320-D2J 160 HP @ 2700 RPM

Performance

• Engine Failure after take off:
  • Flaps up: 70
  • Flaps Down: 65
• Maximum Glide:
  • 2550 lbs: 68 KIAS
  • 2150 lbs: 62 KIAS
  • 1750 lbs: 56 KIAS
• Precautionary Landing with Engine Power: 65 KIAS
• Landing without engine power:
  • Flaps up: 70 KIAS
  • Flaps down: 65 KIAS

Weights

• Max Gross Weight: 2550 lbs
• Empty Weight: xxxx lbs
• Arm: xx.xx
• Empty Moment: xx,xxxx
• Useful Load: xxxx.x
• Baggage: 120 lbs.
• Payload with full fuel: xxxx (xxx – 240 = xxx)

Range

• Cruise, 75% Power, 8000 ft.: 440nm.
• 40ga., no reserve: 3.8 hrs.
• Max. Range at 10,000 ft.: 520nm.
• 40ga., no reserve: 5.6 hrs.
